MAX 5
Order picker truck for quick and comfortable high picking operations
DRIVER JEALOUS OF HIS MACHINE
MAX 5 by Samag is an order picker truck ideal for quick and comfortable medium-high picking operations, able to ensure high order picking performance and an excellent picking capacity by means of diagonal drive.
MAX 5 order picker truck by Samag is available with picking heights up to 10.000 mm.

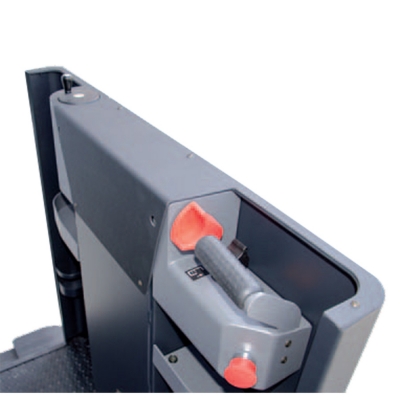

NEW DRIVING ERGONOMICS
- Electronic AC traction and steering control connected via CAN-bus
- 180° steering angle with progressive travel speed reduction according to the angle and progressive travel speed reduction according to the lifting height
- Possibility of choosing three performance levels: P1-P2-P3
- Side access gates to the driver position with 3 bars to facilitate the operator ascent and descent from the cabin
- Possibility of moving and lifting the operator position with side gates open up to 1.200 mm height
- Possibility of adding accessories (document holder, bottle holder).
✔ LOAD CAPACITY UP TO 1.000 KG
✔ SPECIAL DIMENSIONS UPON REQUEST
- some optionals
- Lithium battery
- Scale/Printer
- Use in cold store
| Type | Order pickers | Class | Ride-on order pickers with operator platform for normal-intensive use |
|---|---|---|---|
| Load capacity (Kg) | 1000 | Lifting capacity (mm) | 7500 |
|
|
1.1 |
Manufacturer |
|
|
SAMAG |
|
|---|---|---|---|---|---|---|
|
Characteristics |
1.2 | Manufacturer's type designation | MAX 5-ac | MAX 5-ac SL | ||
| 1.3 | Drive: electric (battery or mains), diesel, petrol, fuel gas | Electric | ||||
| 1.4 | Operator type: hand, pedestrian, standing, seated, order-picker | standing | ||||
| 1.5 | Load capacity/rated load | Q | t | 1 | ||
| 1.6 | Load centre distance | C | mm | 600 | ||
| 1.8 | Load distance, centre of drive axle to fork | x | mm | 282 | 270 | |
| 1.9 | Wheelbase con forche sollevate | Y | mm | 1460 | ||
|
Weight |
2.1 | Service weight (± 5% - battery included) | Kg | 3600 (1) | ||
| 2.2 | Axle loading, laden (front / rear) | Kg | 1136 / 3342 | |||
| 2.3 | Axle loading, unladen (front / rear) | Kg | 1935 / 1165 | |||
|
Wheels and frame |
3.1 | Tyres: solid rubber, superelastic, pneumatic, polyurethane | Vulkollan | |||
| 3.2 | Tyre size, front | mm | 343 x 114 | |||
| 3.3 | Tyre size, rear | mm | 200 x 105 | |||
| 3.5 | Wheels, number front rear (x = driven wheels) | 1X - 2 | ||||
| 3.6 | Tread, front | b10 | mm | - | ||
| 3.7 | Tread, rear | b11 | mm | 1106 | ||
| Dimensions | 4.2 | Height, mast lowered | h1 | mm | (see table) | (see table) |
| 4.4 | Lift | h3 | mm | (see table) | (see table) | |
| 4.4.1 | Total forks lift (h3+h9) | h24 | mm | (see table) | - | |
| 4.5 | Height, mast extended | h4 | mm | (see table) | (see table) | |
| 4.7 | Height of overhead guard (cabin) | h6 | mm | 2300 | ||
| 4.8 | Seat height / stand height | h7 | mm | 235 | ||
| 4.11 | Additional lift | h9 | mm | 800 | - | |
| 4.14 | Stand height, elevated | h12 | mm | (see table) | (see table) | |
| 4.14.1 | Height forks lowered (h12 + 1600 mm) | h28 | mm | (see table) | (see table) | |
| 4.15 | Height of forks from ground | h13 | mm | 85 | 65 | |
| 4.19 | Overall length | l1 | mm | 3175 | 3243 | |
| 4.20 | Lenght of face of forks | l2 | mm | 2025 | 2013 | |
| 4.21 | Overall width | b1/b2 | mm | 1240 / 1150 | 1240 / 1180 | |
| 4.22 | Fork dimensions | slell | mm | 55 / 160 / 1150 | 35 / 100 / 1230 | |
| 4.23 | Fork carriage DIN 15 173, class/type A,B | Welded fork | ||||
| 4.24 | Fork - carriage width | b3 | mm | - | ||
| 4.25 | External fork widths | b5 | mm | 560 - 680 | 560-650 | |
| 4.27 | External width guide rollers | b6 | mm | 1190 | ||
| 4.31 | Ground clearance, laden, below mast | m1 | mm | 65 | ||
| 4.32 | Ground clearance, centre of wheelbase | m2 | mm | 90 | ||
| 4.34 | Aisle width for pallets 800 x 1200 crossways | Ast | mm | (see table) | ||
| 4.35 | Turning radius | Wa | mm | 1795 | ||
| 4.42 | Front head aisle with pallet 800x1200 forked | Ast3 | mm | (see table) | ||
| 4.46 | Width side protection cage | b9 | mm | 955 / 1155 / 1355 | ||
|
Performance |
5.1 | Travel speed (laden / unladen) | Km/h | 9,5 / 9,5 | ||
| 5.2 | Lift speed (laden / unladen) | m/s | 0,27 / 0,34 | |||
| 5.3 | Lowering speed (con / senza carico) | m/s | 0,29 / 0,28 | |||
| 5.7 | Pendenza superabile KB 30' (con / senza carico) | % | 0 | |||
| 5.8 | Max. gradeability (laden / unladen) | % | 5 | |||
| 5.9 | Acceleration time (laden / unladen) | s | 5,47 / 5,28 | |||
| 5.10 | Service brake | Electric AC | ||||
|
Electric motor |
6.1 | Traction motor, power KB 60' | KW | 5 AC | ||
| 6.2 | Lifting motor, performance 15% ED | KW | 9 AC | |||
| Steering motor | KW | 0,4 AC | ||||
| 6.3 | Battery DIN 43531/35/36 A, B, C, | yes | ||||
| 6.4 | Tension / nominal capacity | V / Ah | 48 / 500 | |||
| 6.5 | Battery weight (± 5%) | Kg | 805 | |||
| 6.6 | Energy consumption according To VDI cycle | KWh/h | - | |||
| Other data | 8.1 | Control type | Electric AC | |||
| 8.4 | Sound level at the driver's ear according to DIN 10 053 | dB/(A) | <70 | |||
| (1) Valori riferiti ad “h3 7500” | ||||||
OVERALL DIMENSIONS OF LIFTING GROUPS |
|||||||
|---|---|---|---|---|---|---|---|
| h3 | h24 | h1 | h4 | h12 | h28 | b1 | b6 min. |
| 3000 | 3800 | 2310 | 5300 | 3235 | 4835 | 1240 | 1290 |
| 3500 | 4300 | 2560 | 5800 | 3735 | 5335 | 1240 | 1290 |
| 4000 | 4800 | 2810 | 6300 | 4235 | 5835 | 1240 | 1290 |
| 4500 | 5300 | 3060 | 6800 | 4735 | 6335 | 1240 | 1290 |
| 5000 | 5800 | 3310 | 7300 | 5235 | 6835 | 1240 | 1290 |
| 5500 | 6300 | 3560 | 7800 | 5735 | 7335 | 1240 | 1290 |
| 6000 | 6800 | 3810 | 8300 | 6235 | 7835 | 1240 | 1290 |
| 6500 | 7300 | 4120 | 8800 | 6735 | 8335 | 1240 | 1290 |
| 7000 | 7800 | 4370 | 9300 | 7235 | 8835 | 1240 | 1290 |
| 7500 | 8300 | 4870 | 9800 | 7735 | 9335 | 1240 | 1290 |
MAX 5 AC - DIMENSIONS OF WORKING AND FRONT HEAD AISLE |
MAX 5 AC SL - DIMENSIONS OF WORKING AND FRONT HEAD AISLE |
|||||||
|---|---|---|---|---|---|---|---|---|
| Pallet | Ast (1) | Ast3 (2) | svolta 90° | Pallet | Ast (1) | Ast3 (2) | svolta 90° | |
| b12 / I6 | b1=1240 | b1=1240 | b1=1240 | b12 / I6 | b1=1240 | b1=1240 | b1=1240 | |
| 800 / 800 | 1440 | 3150 | 2085 | 800 / 800 | 1440 | 3170 | 2095 | |
| 1000 / 800 | 1440 | 3190 | 2105 | 1000 / 800 | 1440 | 3215 | 2120 | |
| 1200 / 800 | 1400 | 3235 | 2125 | 1200 / 800 | 1555 | 3265 | 2185 | |
| 800 / 1000 | 1440 | 3340 | 2180 | 800 / 1000 | 1440 | 3355 | 2190 | |
| 1000 / 1000 | 1440 | 3375 | 2195 | 1000 / 1000 | 1440 | 3395 | 2210 | |
| 1200 / 1000 | 1400 | 3410 | 2215 | 1200 / 1000 | 1555 | 3440 | 2270 | |
| 800 / 1200 | 1440 | 3530 | 2275 | 800 / 1200 | 1440 | 3545 | 2280 | |
| 1000 / 1200 | 1440 | 3560 | 2290 | 1000 / 1200 | 1440 | 3580 | 2300 | |
| 1200 / 1200 | 1400 | 3595 | 2305 | 1200 / 1200 | 1555 | 3620 | 2360 | |
| Ast, Ast3 e svolta a 90° comprendono "a" (spazio di manovra) = 200 mm (1) Valori minimi per corridoi di lavoro con guide a terra (2) Valori minimi per corridoi di testata (i valori sono intesi fra i bordi di raccordo delle eventuali guide a terra) |
Ast, Ast3 e svolta a 90° comprendono "a" (spazio di manovra) = 200 mm (1) Valori minimi per corridoi di lavoro con guide a terra (2) Valori minimi per corridoi di testata (i valori sono intesi fra i bordi di raccordo delle eventuali guide a terra) |
|||||||
